Since 1984, TEAT is the benchmark for the companies that need to convey semi-processed materials, in liquid, semi-liquid or gaseous state, holding a uniform temperature.

TEMPERATURE
CONTROL

TEAT designs and manufactures electrically heated hoses for conveying of liquids and gas, with constant holding of temperature. Operating temperatures range from 86 to 482°F (30...250°C), special version up to 662°F (350°C).

Several nominal diameters of internat hose can accomplish any delivery.
The wide range of screw fittings and electrical connectors meet any technical and productive demand.

Operating temperatures range from 86 to 482°F (30...250°C), special version up to 662°F (350°C).

Operating pressure range from 0 to 265 bar, special versions up to 345 bar.

HOSE
STRUCTURE

VERSIONS

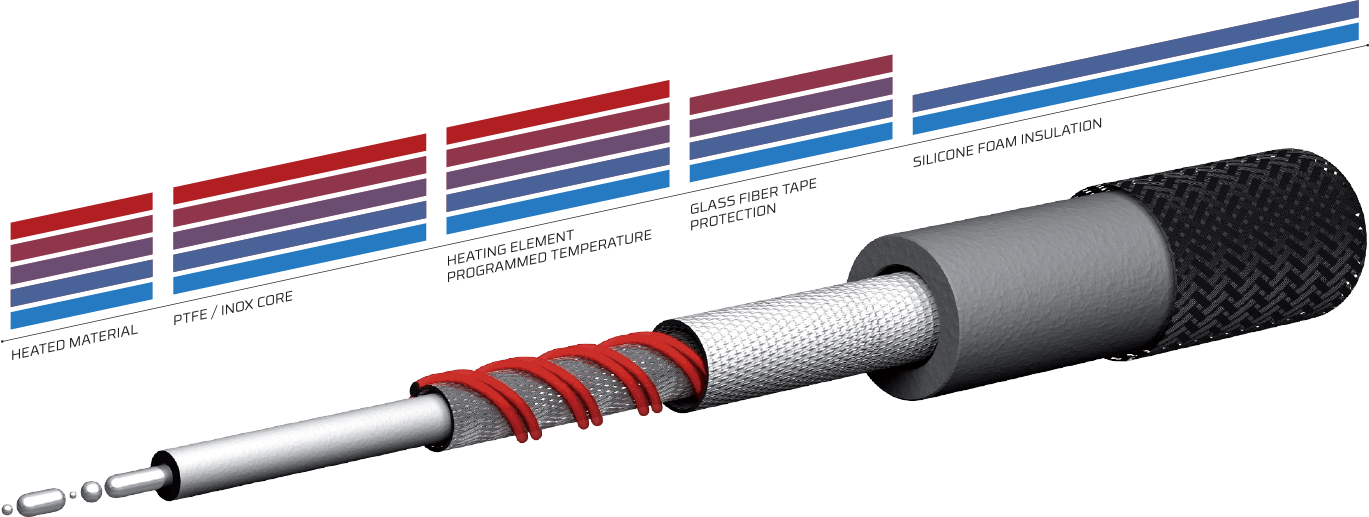

In W, WD, WHP, WFA and W/FLEX versions the inner hose is made of extruded sintered polytetrafluoroethylene (PTFE - DUPONT© original with powder 62N), an 18/8 AISI 304 stainless steel braid outer sheath ensures protection and high resistance to working pressures.

In W, WD and WHP versions the inner hose is smooth, while in WFA and W/ FLEX versions is corrugated. WFA and W/FLEX corrugated versions are recommended for all those applications that require great flexibility and simple handling, combined with easy cleaning.

The INOX version is based on a flexible stainless austhenitic steel hose with parallel ondulation, without gaskets and seam, which guarantees perfect tight of pressure and also very high flexibility.

A sensor, inserted in the inner part, detects the temperature of the material and allows an external device to control the heating element to hold the temperature constant.
The end fittings are applied by means of a special process of cold deformation (pressing) which garantees a perfect tightness even at very high pressure.
The end covers and the polyamide sheath assure optimal mechanical strength, indispensable for manual application or hose movement.

The manufacturing of the heating hoses satisfies internal and external controls. The production is entirely tested.

DOWNLOAD BROCHURE

TYPE W
TEMPERATURE UP TO 250°C / PRESSURE UP TO 265 BAR

TYPE WFA
TEMPERATURE UP TO 200°C / PRESSURE UP TO 100 BAR

TYPE WD
TEMPERATURE UP TO 250°C / PRESSURE UP TO 320 BAR

TYPE W-FLEX
TEMPERATURE UP TO 250°C / PRESSURE UP TO 80 BAR

TYPE WHP
TEMPERATURE UP TO 250°C / PRESSURE UP TO 345 BAR

TYPE INOX
TEMPERATURE UP TO 350°C / PRESSURE UP TO 132 BAR

CONFIGURATOR

NEWS

Do you already have clear ideas? You can configure the electrically heated hose for your application needs.

Enter all the features of the electrically heated hose and receive your quote by email.

CONFIGURE NOW

CONTACT US

TEAT makes customized and tailor-made solutions for the client. From one single product up to series production, TEAT combines hi-tech with utmost care for details.

Contact us! A qualified team of experts and technicians, specialized in the thermo field, is available for studying the preserving and heating processes, suitable to the most different needs.
